Grassland Fence

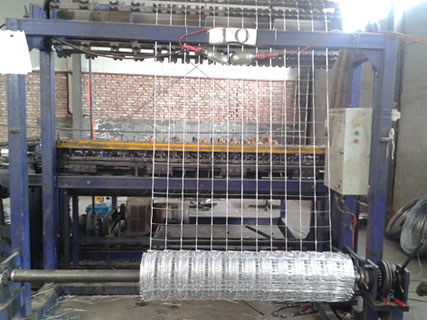

Grassland fence adopts high strength galvanized steel wire; using advanced machine equipment, Careful processing, and automation wiring formed part.
Material: High-strength galvanized iron wire; High-strength zinc plated steel.
Specification:
- Mesh: (cm) 15-14-13-11-10-8-6(longitude); (cm) 15-18-20-40-50-60-65(woof)
- Height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m
- Length: 115feet (50m), 330feet (100m)
- Set and bottom wire diameter: 2.5mm
- In wire diameter: 2.0mm
- Volume diameter: 270mm
- However, the mesh, height, length, volume diameter can be available according to your request.
Features: novelty structure, firmly and exactitude, flat mesh surface, equality mesh, good toughness, never hold together, skid proof, strut, anti-rust, hurricane lamp, whatever the weather is, we can ensure the natural life. Usually it can be used for several years. Even if cut into parts, the parts can bear press.
| Sizes | Number of Warp Wire | Roll Width | Warp & Weft Wire Diameter | ||
| Edge Warp Wire | Middle Weft Wire | Warp Wire | |||
| 91L 5/70/15 | 5 | 700mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 8/110/15 | 8 | 1100mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 5/70/30 | 5 | 700mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 6/70/30 | 6 | 700mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 6/90/30 | 6 | 900mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 7/90/30 | 7 | 900mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 8/110/30 | 8 | 1100mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 5/70/60 | 5 | 700mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 6/90/60 | 6 | 900mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 6/100/60 | 6 | 1000mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 7/90/60 | 7 | 900mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 7/100/60 | 7 | 1000mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 7/110/60 | 7 | 1100mm | 2.8mm | 2.5mm | 2.5mm |
| 91L 8/110/60 | 8 | 1100mm | 2.8mm | 2.5mm | 2.5mm |
